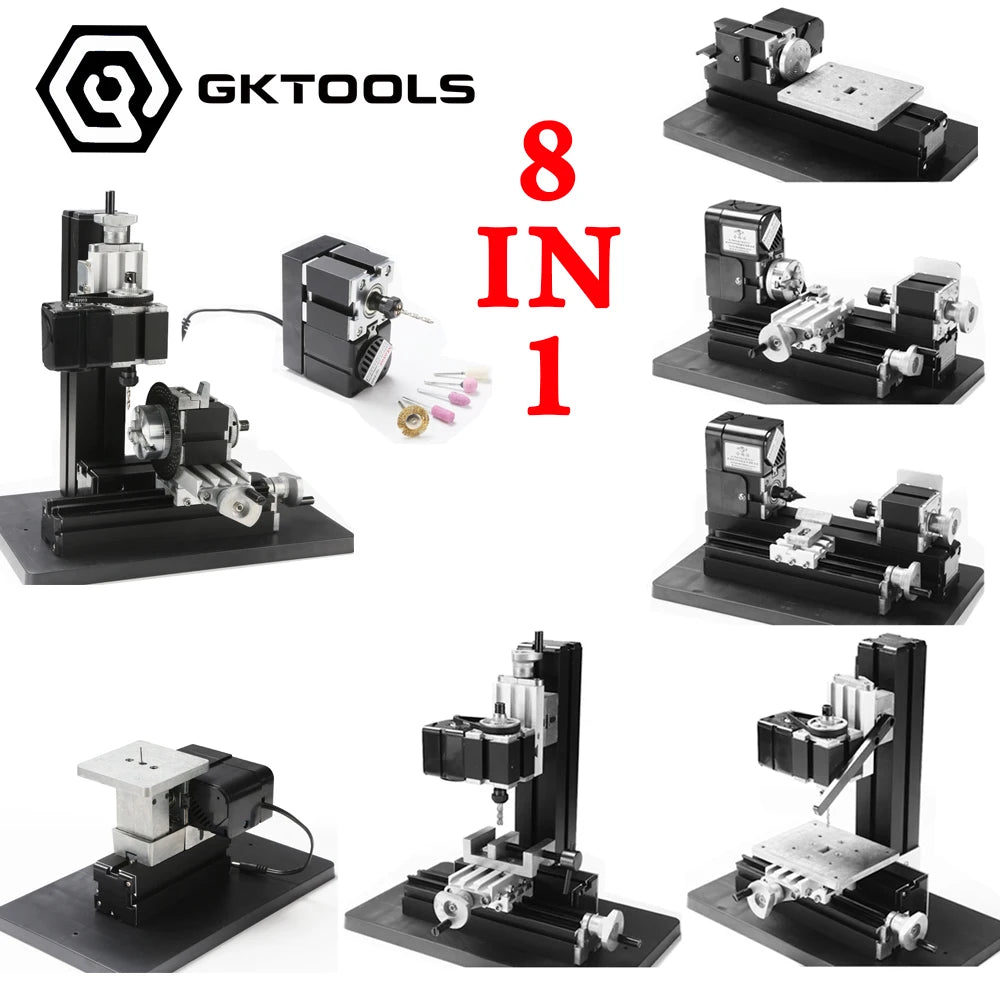

8 in 1 Mini Lathe Machine





1.Product Details Show



• 1.Sawing machine:



Wire saw to ensure absolute security, through a special design, even zigzag across the skin, it will only cause a slight vibration, a special saw blade is designed to process objects of arbitrary shape, whether it is circular and any bending of the curve can be smoothly ground saw, transformer overheating protection.



Technical parameters:

1	Motor Speed	20 000 r/min
2	Input Voltage/ Current/ Power	12v DC/ 2A/ 29W
3	Table size	90mm x 90mm
4	Maximum depth of cutting saw	Hard wood 4mm; Tri-ply wood 7mm; Soft wood 18mm; Aluminium flake 0.5mm; Organic Glass 2mm

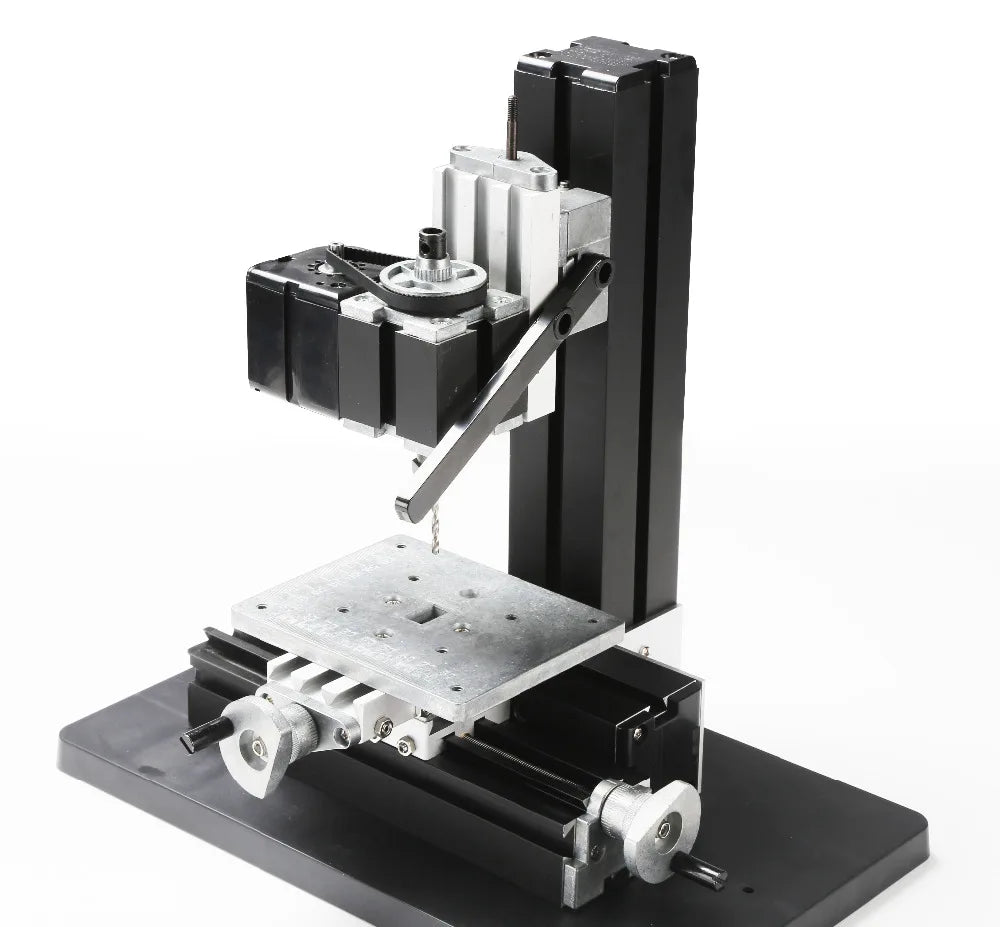

• 2.Drilling machine:



Tilt slider, you can adjust the angle of drilling. Vertical drilling machine with different components can also be turned into a different machine, such as radial drill, hand drill, etc. transformer overheating protection.



Technical parameters:

1	Motor Speed	20,000 rev / min
2	Input Voltage / Current / Power	12V DC/ 2A/ 24W
3	Slide Stroke	30 to 50mm
4	Chuck	1-6mm
5	Vise Clamping Size	25X35mm
6	Work Desk Area	123 x 100mm



• 3.Grinding machine:



Center height 25mm, sand paper size is generally 100, according to the different parts and work that requires selection sandpaper. Processing objects can be used in a vise or drill a fixed station, can also be hand-held grinding various angles, transformer overheating protection.

Technical parameters:

1	Motor Speed	20,000 rev / min
2	Input Voltage / Current / Power	12V DC/ 2A/ 24W
3	Work Desk Area	123 x 100mm
4	Processing Materials	Wood ,Plastic, Soft Metals (Aluminum, Copper, etc.)

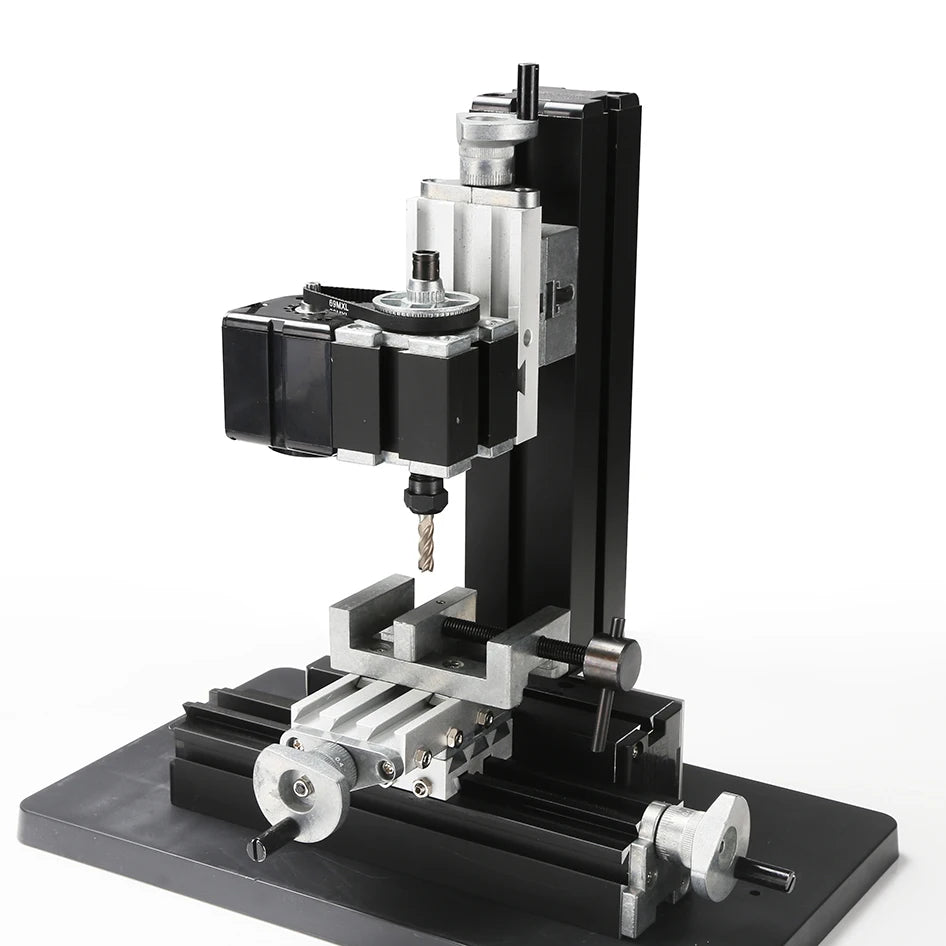

• 4.Milling Machine:



Can be turned into a level based on the actual use of milling machine, vertical milling machine, hand-held milling machine. Milling machine has a certain risk, the child must be used under the guidance of an adult, transformer overheating protection.

Technical parameters:

1	Motor Speed	20,000 rev / min
2	Input Voltage / Current / Power	12V DC/ 2A/ 24W
3	Slide Stroke	30 ~ 50mm
4	Chuck	1-6mm
5	Vise Clamping Size	25 ~ 35mm
6	Processing of Materials	wood, plastic, soft metals (aluminum, copper, etc.)

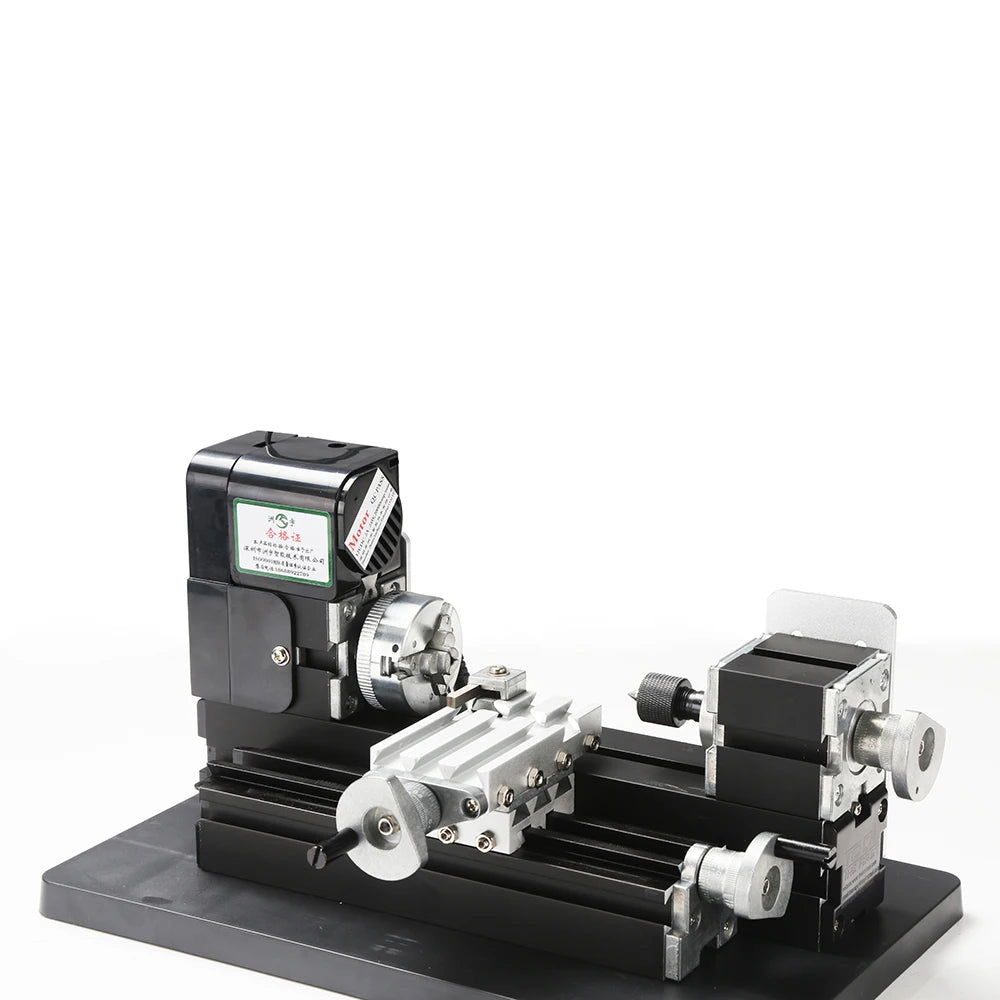

• 5.Metal lathes:



You can use the three-jaw chuck or collet (1 ~ 6mm) piece of metal holding the workpiece. Machine tool center height 25mm, center distance 135mm, if the use of the middle block and reprovision of the lead plane seat and other accessories can expand the length of the base, processing more workpiece length, transformer overheating protection.

Technical parameters:

1	Motor Speed	20,000 rev / min
2	Input Voltage / Current / Power	12VDC/2A/24W
3	Processing Materials Diameter	25mm
4	Processing Materials Length	135mm
5	processing Materials	wood, plastic, soft metals (aluminum, copper, etc.)

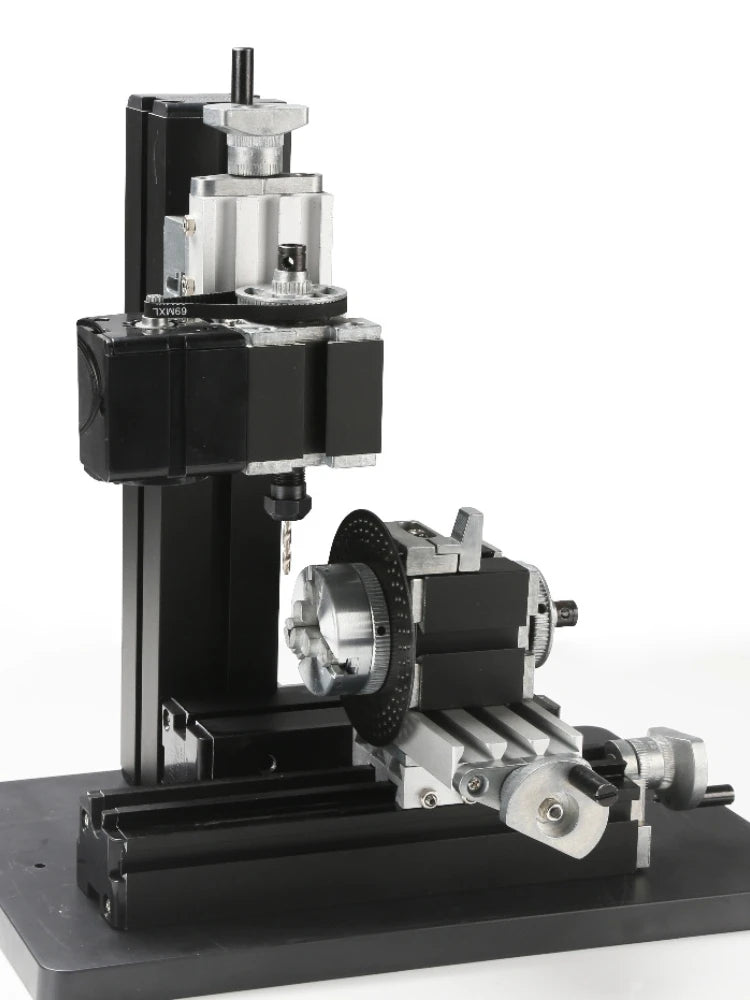

• 6.Indexing milling machine:



1. the main components of the machine: for example headstock, tailstock, base, slider, connecting blocks, and so all-metal structure, with the use of indexing plate, round workpieces can be equally divided drilling.

2. there are three sets of holes indexing plate circumference equal parts distribution, respectively 36,40,48 small holes can be actually need to select groups based on the indexing holes.



Technical parameters:

1	Motor Speed	20,000 rev / min
2	Input Voltage / Current / Power	12V DC/ 2A/ 24W
3	Three-jaw chuck	50mm
4	Processing Materials	Wood ,Plastic, Soft Metals (Aluminum, Copper, etc.)

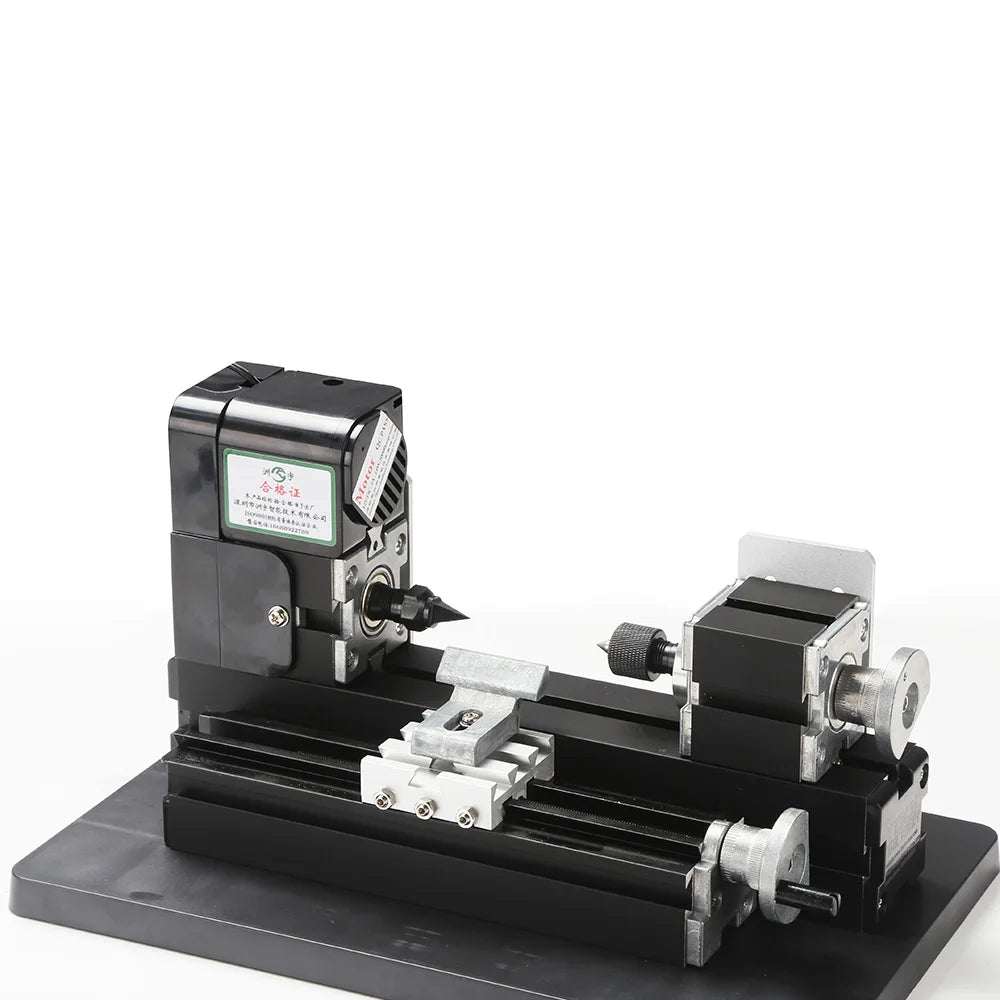

• 7.Wood-turning Lathe:

Machine main components: for example headstock, tailstock, base, slider, connecting blocks and so all-metal construction.

1.softwood, hardwood can be processed, can be arbitrary creative styling.

2.You can use jaw chuck or collet (1 ~ 6mm) clamp the workpiece, center gong high 25mm, if the block can be increased using an intermediate heightening 50mm center distance:. 135mm, if the use of specialty chassis (500mm) Canadian grown slide stroke 365mm.



Technical parameters:

1	Motor Speed	20,000 rev / min
2	Input Voltage / Current / Power	12VDC/2A/24W
3	Processing Materials Diameter	45mm
4	Processing Materials Length	135mm
5	processing Materials	wood, plastic, soft metals (aluminum, copper, etc.)



• 8.Handle tool:

1	Motor Speed	20 000 r/min
2	Input Voltage/ Current/ Power	12v DC/ 2A/ 29W
3	Maximum depth of cutting saw	Hard wood 4mm; Tri-ply wood 7mm; Soft wood 18mm; Aluminium flake 0.5mm; Organic Glass 2mm







. Brand Name: GKTOOLS,Origin: Mainland China,CNC or Not: Normal,Type: Other,Condition: New,Certification: CE,Model Number: Q20008M,Maching: Wood; Soft metal,Color: Red,Packing weight: 8.5kg,Material: Metal
