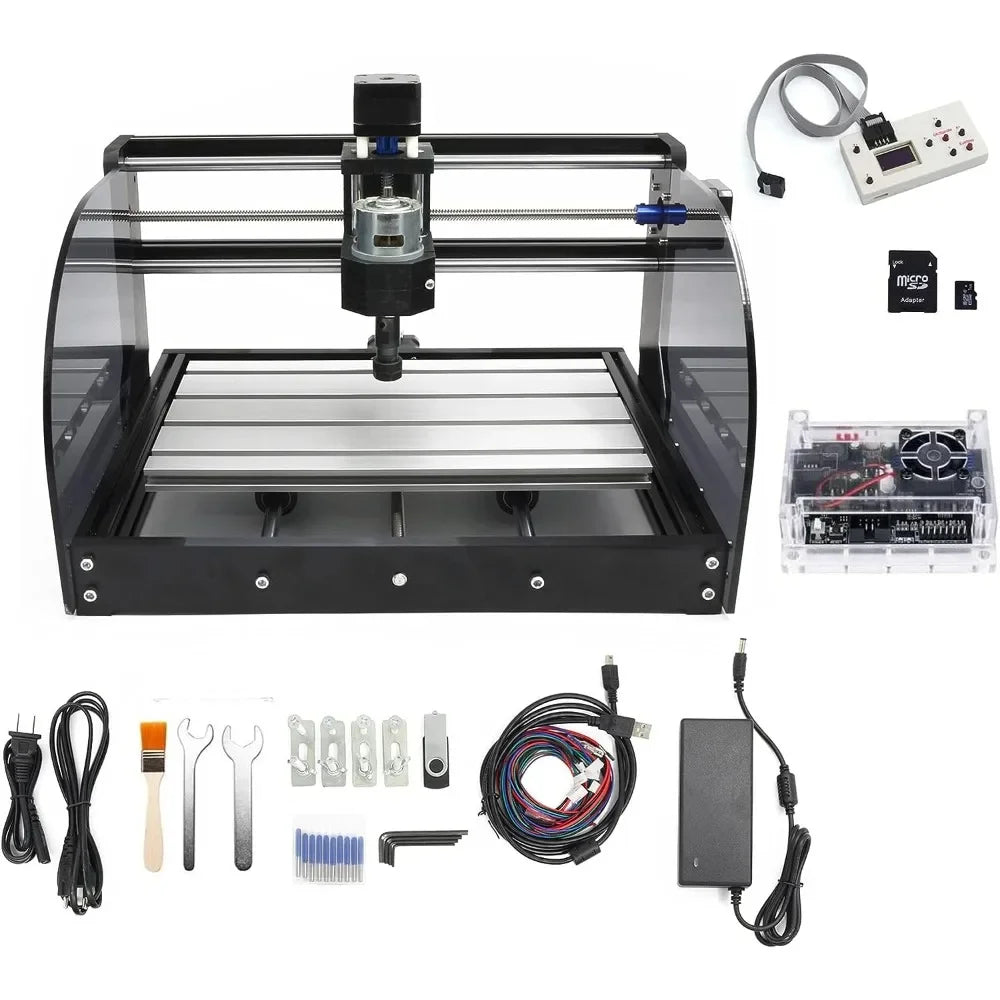

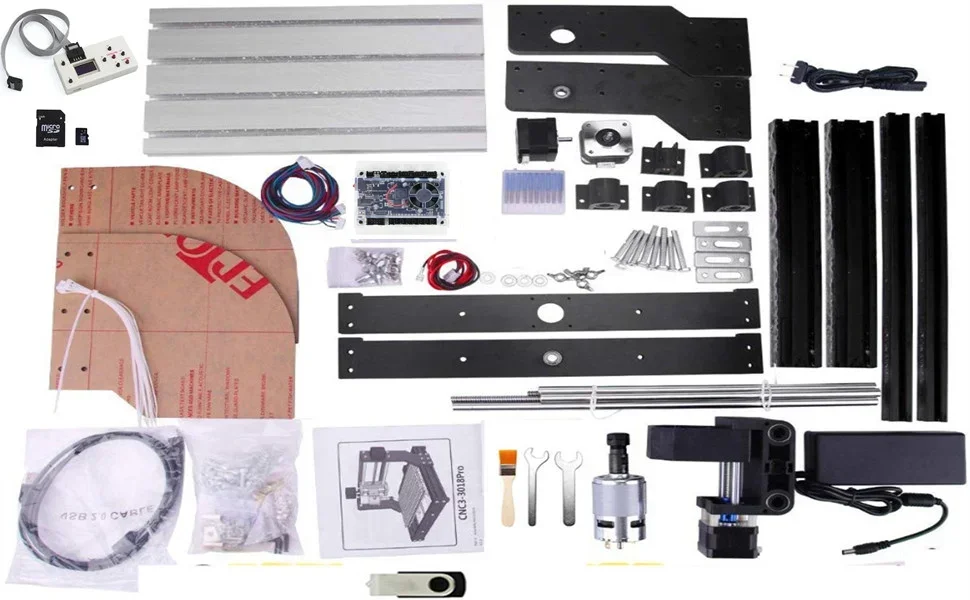

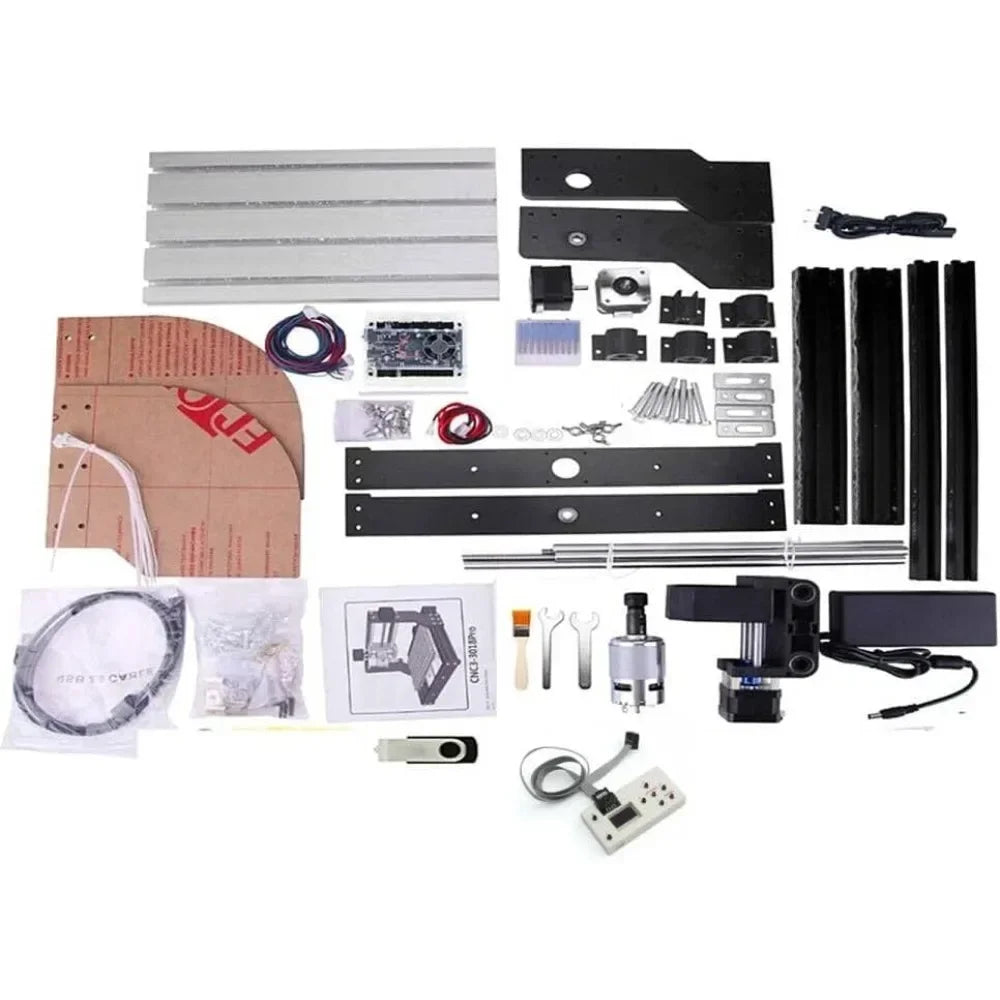

Features

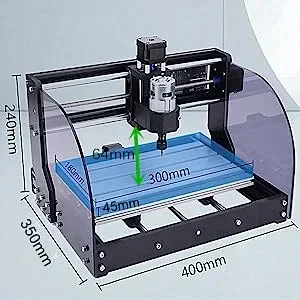

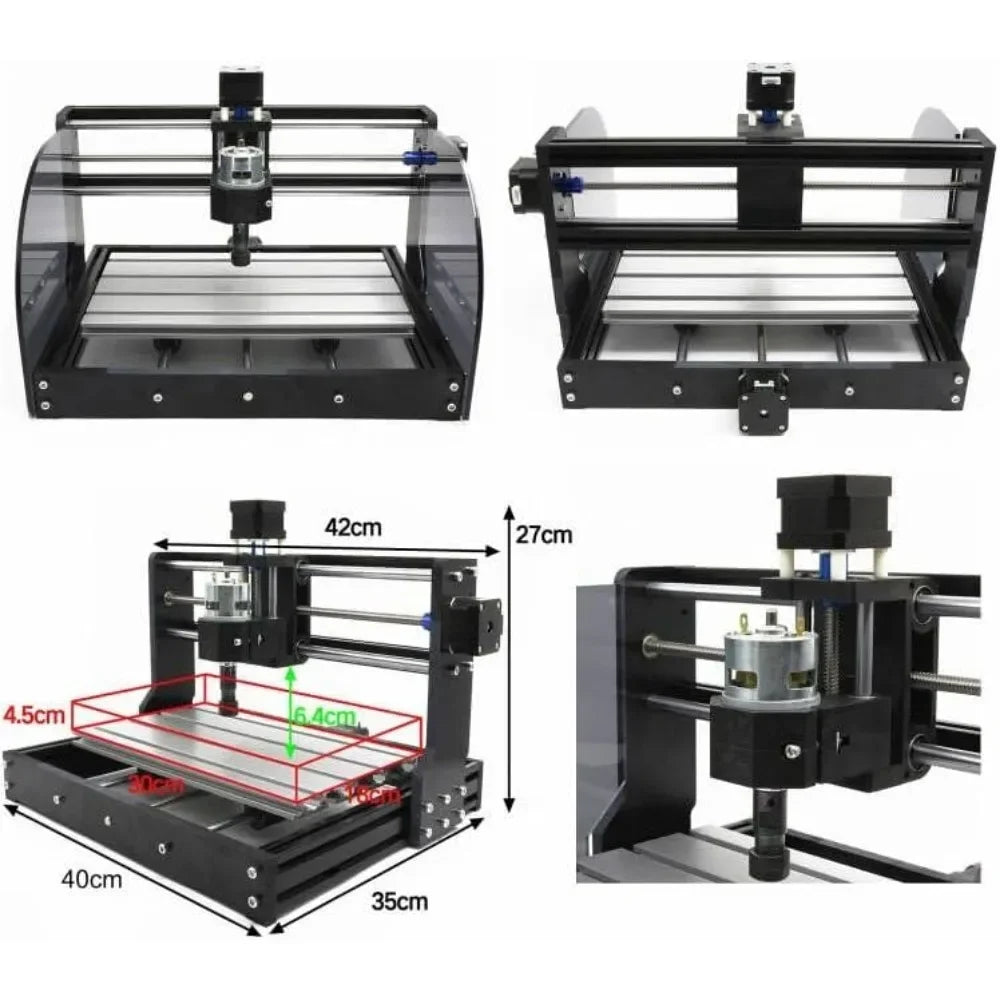

• Working area: 30x18x4.5cm (11.8x7.1x1.8")
• Frame size: 42x35x27cm (16.53 x 13.78 x 10.63")
• Processing thickness: 4.5cm (height 6.4cm)
• Material: Aluminum Alloy;Screw rod: T8 screw rod, lead 4mm, double copper nut backlash
• Step motor: Nema17 stepper motor 42x42x34mm,1.33A,0.3N.m,43oz-in
• Power supply : 24V 5.6A power adapter (input voltage 110-240V)
• Support System: Windows XP / Win 7 / Win 8 / Win 10. (32/64 bit) Linux;
• Supporting file: G-code (.nc/.txt/.ngc/.ncc/.tape/.gcode)
• Processing accuracy: About 0.2mm
• Control system: grbl control, USB interface

Side shields

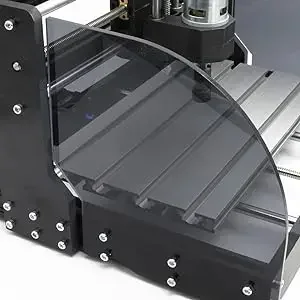

Add 2pcs Side shields to prevent the sawdust from splashing.

Aluminum workbench

• Aluminum profile manufacturing,with high quality,sturdy and stable structure frame.
• Professional T8 T-screw,4mm lead,2mm pitch,with copper nut.

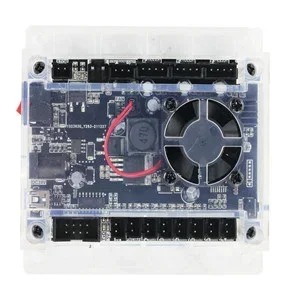

GRBL controller board

• Connection: PC-USB connection
• Support software: GRBL controller/Candle/UniversalGcodeSender
• Input voltage: 12-24VDC
• Master chip: atmel 328P (arduino nano)
• Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
• Spindle PWM speed: Support
• Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)
• Power Interface: 5.5-2.5mm DC interface
• Support 3-pins module: support

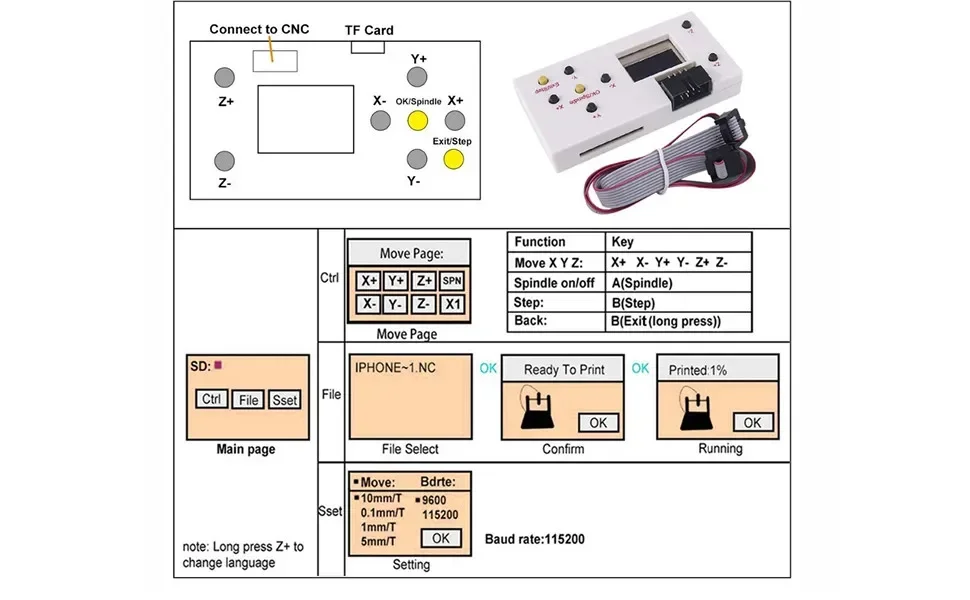

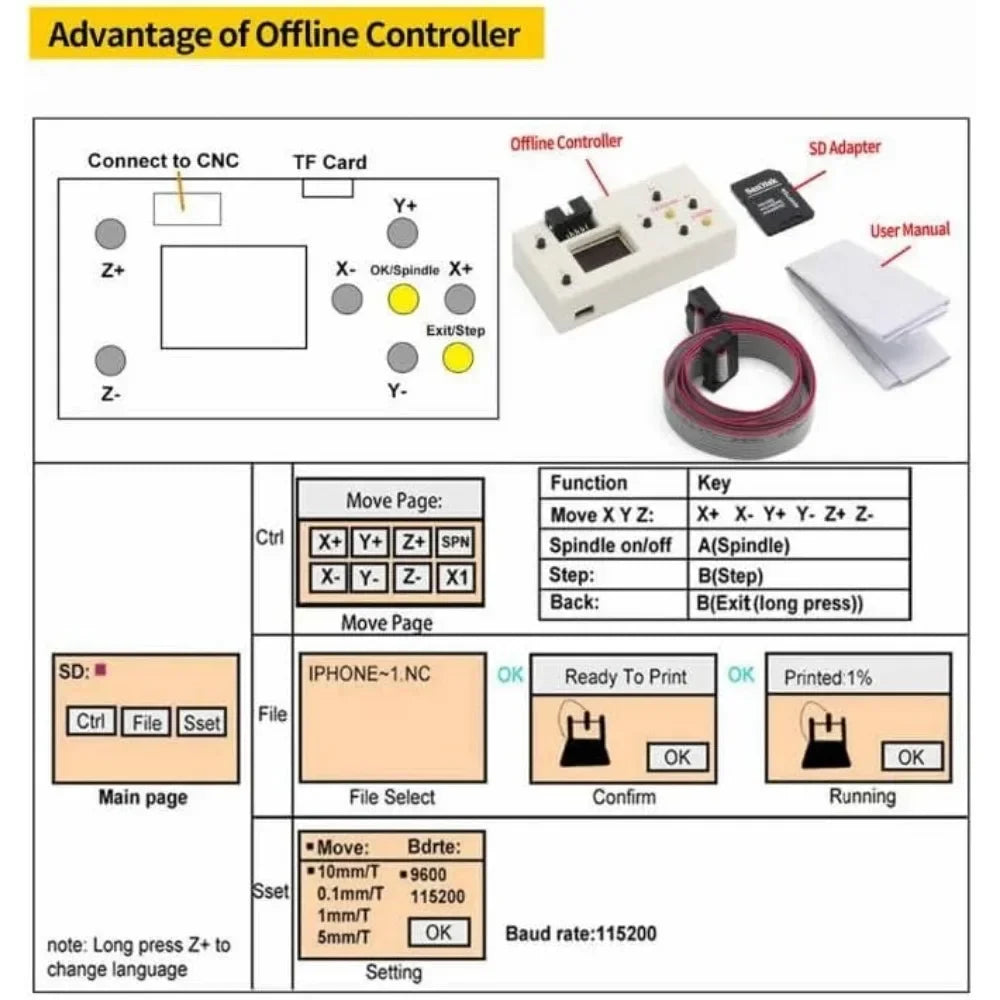

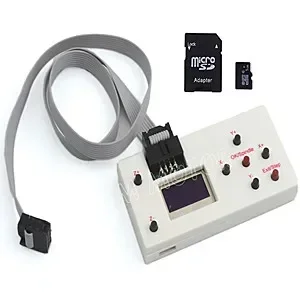

GRBL offline control

• Support SD card and TF card at the same time, standard capacity 1G.
• With this offline controller module, you can directly control the CNC router without connecting it to your computer.
• After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.
• Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fan
• File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computer
• Save file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.
• SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it won't work.SD card capacity 4G could be recognized.

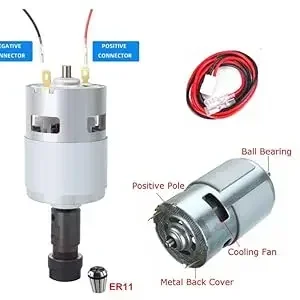

775 Spindle ER11

• Spindle parameters: 775 spindle motor (24-36V) 24V:10000r/min
• Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.
• Spindle PWM speed: Support;power 0-100% adjustable
• Motor shaft diameter: 15mm;
• Motor diameter: 42mm
• Drill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )
• Spindle Chuck: ER11
• Processing accuracy: About 0.2mm
• Machinable material: Wood, plastic, PCB, PVC, carbon fiber, acrylic, density board etc
• Power: DC 24V 5.6A power adapter (input voltage 110-240VAC)

Compared with the old version

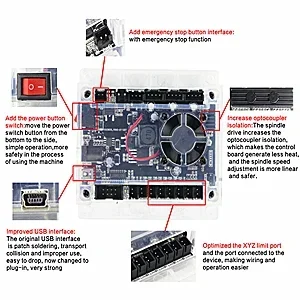

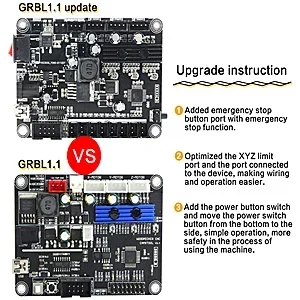

• Add the function of X/Y/Z axis limit switches,optimized the XYZ limit port and the port connected to the device,making wiring and operation easier.After installing the limit switch, when the XYZ axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.
• Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.
• Add the power button switch and move the power switch button from the bottom to the side,simple operation,more safety in the process of using the machine.

Advantage

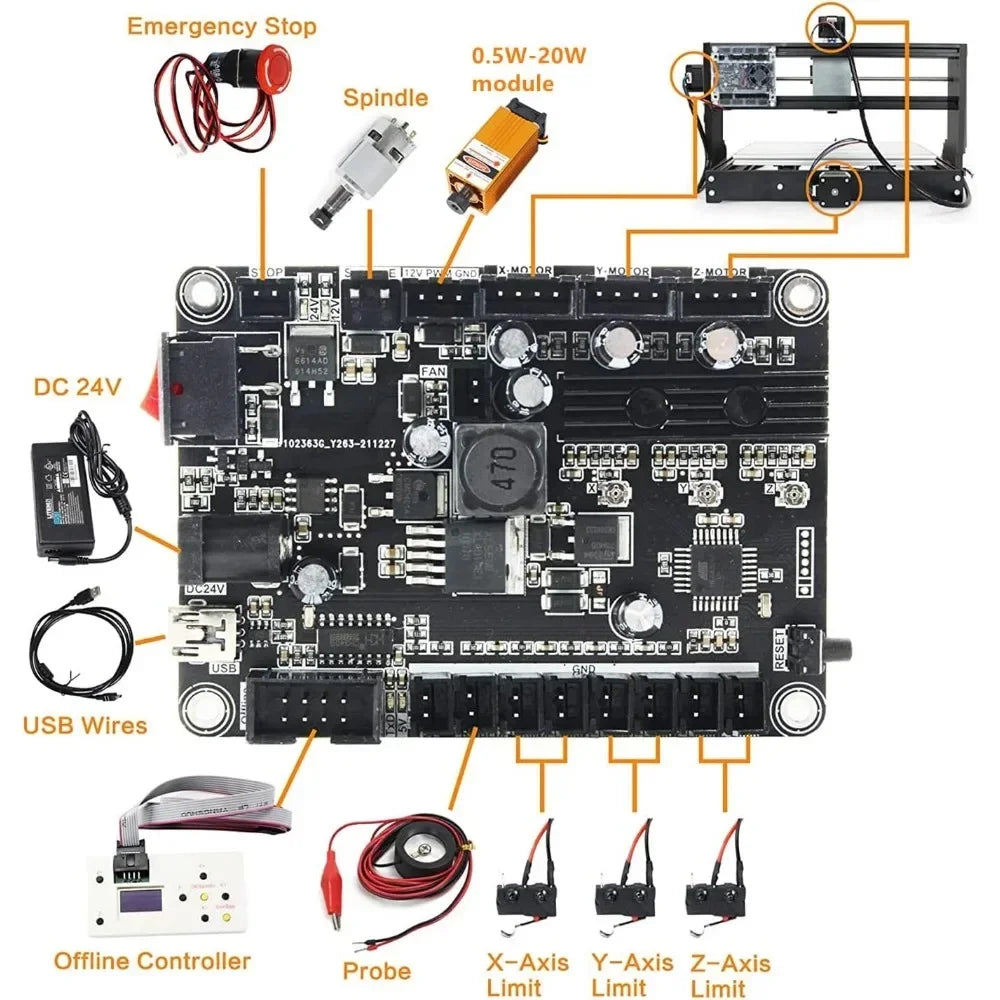

• Add emergency stop button port, probe port and XYZ limit port.

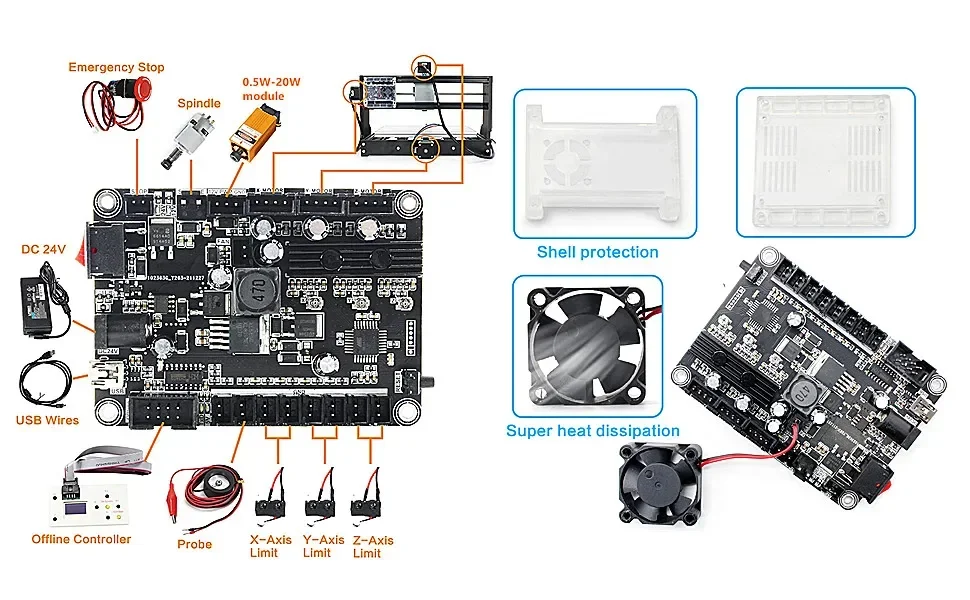

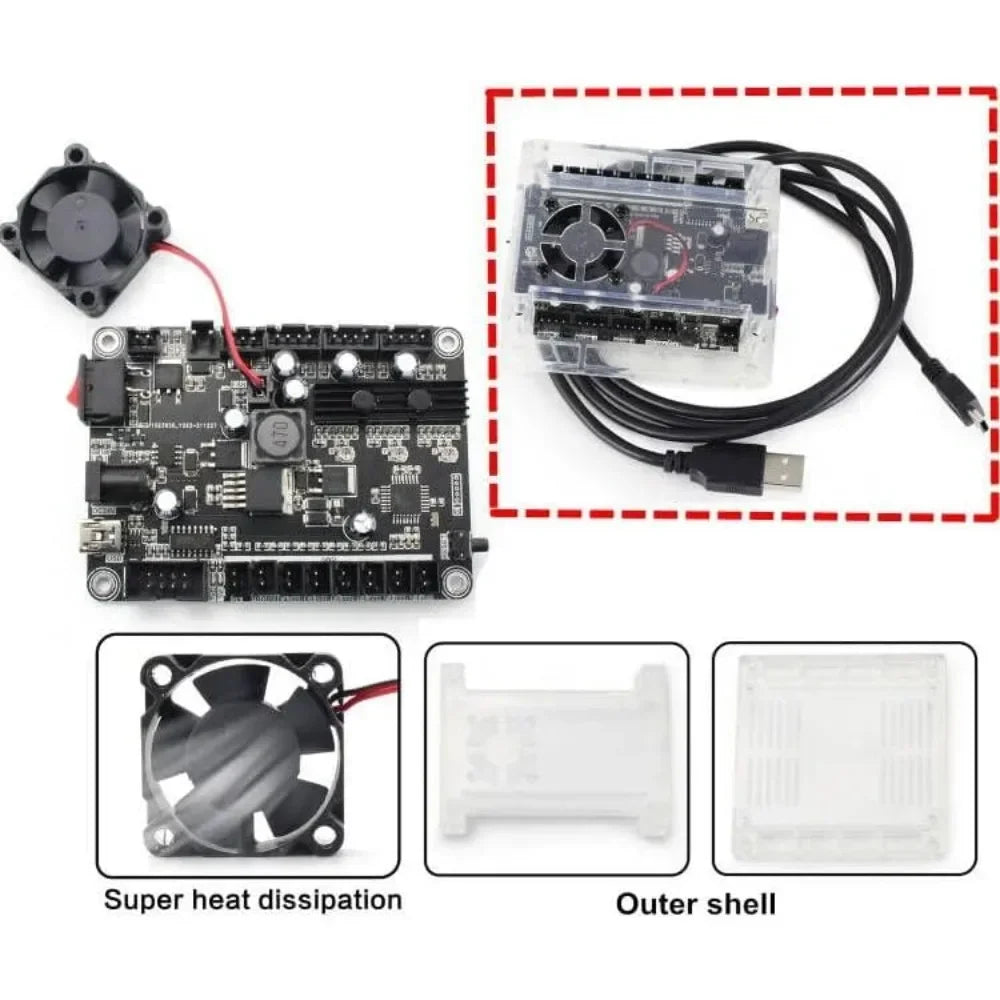

• Add the outer casing: protect control board in transit,to avoid short circuit problem during use;
• Add the power button switch;
• Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy;
• Add the fan port to force heat dissipation;
• Add offline recognition,can insert offline modules and computers at the same time.Offline will automatically identify if there is computer control.
• Enhanced spindle drive,can support 20000rpm spindle.support more powerful spindle.
• Improved USB interface: the original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong;
• The spindle drive increases the optocoupler isolation, which makes the control board generate less heat, and the spindle speed adjustment is more linear and safer.

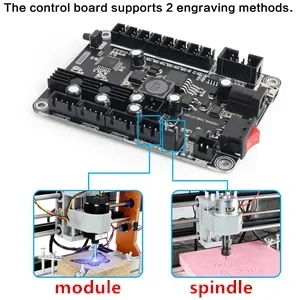

Support two engraving methods

The control board support two engraving methods,our package comes with a spindle motor but without the module in the picture above.

Q&A

Q: What materials can the milling cutter generally engrave or cut?

A: Wood, acrylic (acrylic), pcb, pvb, soft metal, iron, glass, stone etc.

Q: What thickness of wood or acrylic can generally be cut by module?

A: 3-5mm wood board (acrylic), speed setting 100, power setting 1000;

Multiple cuts can cut 12mm wooden boards by spindle.

Applications

1. CNC 3018 Pro Max Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;
2. 3018 Pro Max cnc machine is very easy to install,stable structure.
3. Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material;
4. soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.
5. if you change the spindle to a 3pins module,also can carve the kraft paper, wood, leather(wallet), bamboo.

Q&A

Q: The X,Y and Z axis of the machine cannot be moved,what should I do?

A: First check whether the wires are correctly connected, whether the power switch of the control board is pressed, and then check whether the coupling is off.

Q:What should I do if the control board cannot be connected?

A:Exit the software, unplug the wire, and reconnect it. Or update the firmware.

Q: How to modify the parameters when the limit switch is activated?

A: Enter 21=1 and 22=1 commands.

Q: The engraved image is reversed,what should I do? A: Enter 3=2 or RST=*command

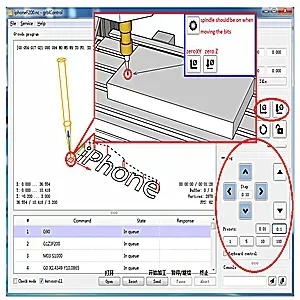

GRBL Software

• Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
• File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap,*.txt and *.cnc.
• Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
